Liquid thermostat Primelab: TL - 4
Back to search results

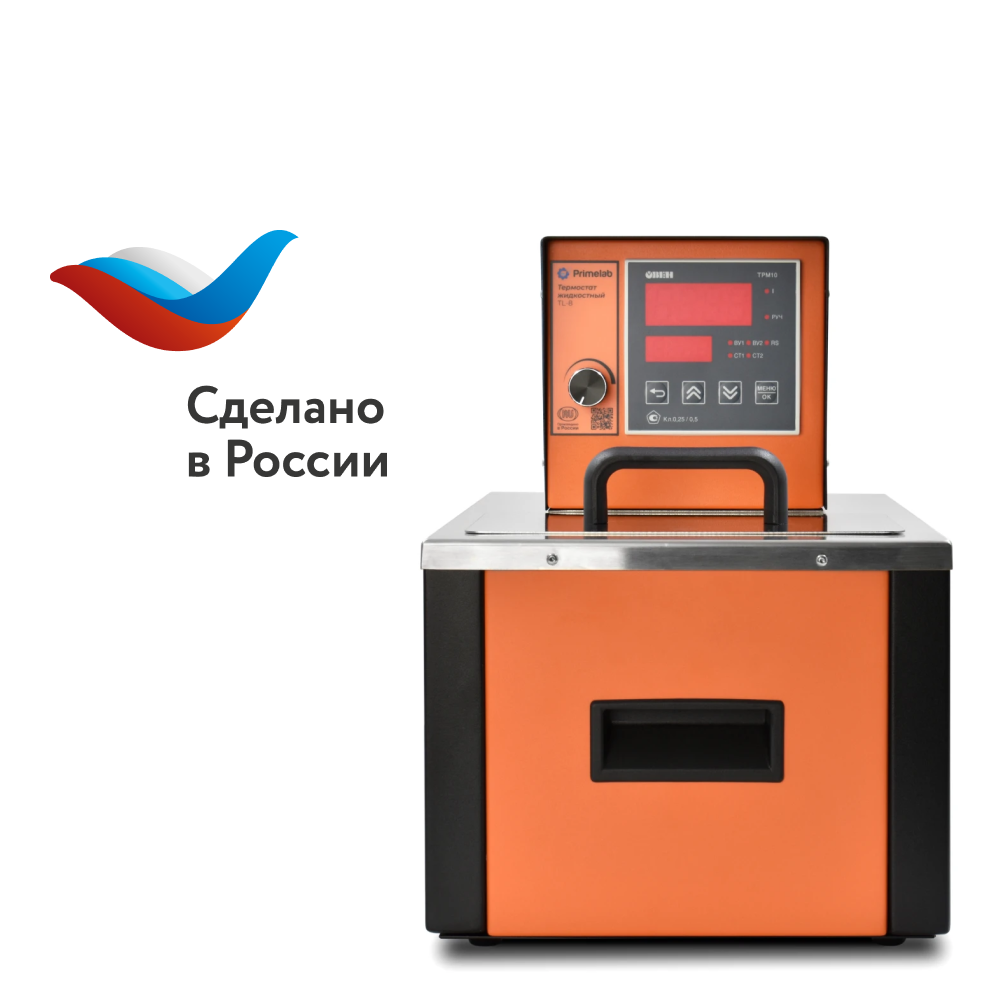

Liquid thermostat Primelab: TL - 4
The TL-4 circulation thermostat from the TL Primelab family is a reliable and effective solution for maintaining the set temperature of objects in the bath and in the external circuit.
This model is designed to work with water as well as non-aqueous fluids, making it a versatile tool for laboratory and industrial processes.
Design Features:
The intelligent control system adapts the parameters of the PID controller to the type of working fluid, ensuring stable operation of the system even when the network voltage is unstable or the air temperature changes.
The circulation pump effectively mixes the coolant in the bath and ensures high accuracy in maintaining the temperature of the external system, both closed and open.
A reliable heating element guarantees safety and stable heating of the coolant.
The display shows the current and set temperatures, setting values and service parameters, and the multifunctional control knob ensures ease of use.
A safety device with sound and light warning automatically turns off the heating in the event of a break in the temperature sensor circuit or the coolant level drops below the permissible level.
The working bath is made of stainless steel, has a long service life and is easy to clean.
The outer body of the steel bath is thermally insulated and powder coated for safe operation even at high temperatures of the working fluid.
The circulation thermostat TL-4 from Primelab is quality, reliability and convenience in one device. Rest assured that your process temperature control is accurate and stable.
Characteristics
Country of Origin
Russia
Characteristics
A country
Russia
Overall dimensions, L×W×H, mm
382x346x184
Temperature control range
+20....+200 °C
Displayed temperature resolution, °C
0.1
This model is designed to work with water as well as non-aqueous fluids, making it a versatile tool for laboratory and industrial processes.
Design Features:
The intelligent control system adapts the parameters of the PID controller to the type of working fluid, ensuring stable operation of the system even when the network voltage is unstable or the air temperature changes.
The circulation pump effectively mixes the coolant in the bath and ensures high accuracy in maintaining the temperature of the external system, both closed and open.
A reliable heating element guarantees safety and stable heating of the coolant.
The display shows the current and set temperatures, setting values and service parameters, and the multifunctional control knob ensures ease of use.
A safety device with sound and light warning automatically turns off the heating in the event of a break in the temperature sensor circuit or the coolant level drops below the permissible level.
The working bath is made of stainless steel, has a long service life and is easy to clean.
The outer body of the steel bath is thermally insulated and powder coated for safe operation even at high temperatures of the working fluid.
The circulation thermostat TL-4 from Primelab is quality, reliability and convenience in one device. Rest assured that your process temperature control is accurate and stable.
Characteristics
Country of Origin
Russia
Characteristics
A country
Russia
Overall dimensions, L×W×H, mm
382x346x184
Temperature control range
+20....+200 °C
Displayed temperature resolution, °C
0.1
Suppliers have this product:
Circulation thermostat LT-111b
Technical specifications:
Temperature range:
without external cooling, °C
Current+10 ... +100
with tap water cooling °C
Tvods+5 ...+100
Accuracy of temperature maintenance, °C ± 0.1
The error of setting the set temperature, no more than ° C ± 0.2
Heater power, W 1900
Pump:
max. flow rate, l/min 7.5
pressure, 0.17 bar
Bath volume, l 11
The working fluid is water, water-glycerin mixture.
The open part of the bath / depth, mm 160x240/200
Overall dimensions, mm 268x335x420
Weight, kg 10
LOIP
Saint Petersburg
Produced in: Saint Petersburg
VT15 Liquid thermostat
It is designed to maintain a set temperature of a liquid coolant circulating both in an internal bath and in external closed-type consumers.
Feed pump for external closed-type thermostating systems.
All-metal stamped tub with a volume of 15 liters and a depth of 200 mm.
Stability and uniformity of temperature in the inner bath is not worse than ± 0.1 ° C
The operating temperature range is +20...+200 °C.
Bath volume 15 l
Overall dimensions 420x330x480 mm
The open part of the bath is 150x260 mm
Bath depth 200 mm
Weight 16 kg
Power consumption 2.2 kW.
Termeks
Tomsk
Produced in: Tomsk
Cultivator KVM-05 (TU 26.51.70-003-63790925-2021 )
from
150 000 ₽
1 supp.
The Europolitest company continues to release its "bestseller" cultivator KVM-05.
This cultivator was developed and produced jointly with the Candidate of Biological Sciences prof. Grigoriev and LLC "Omikron", LLC "SFU-System" Krasnoyarsk. Since 2021, due to the reorganization of the production chain, the production of cultivators of the KVM series has been established by Europolitest LLC in the mode of a full production cycle. The thermophilic strain of chlorella algae has been widely used in ecocontrol laboratories, biotests with this test object are by far the most automated biotests that allow reducing time at all stages of work (building up the uterine culture, sample exposure in the biotest, registration of the test function).
Cultivator KVM-05 is a long-lived among cultivators of this purpose and a standard of reliability, reproducibility and durability.
Used in techniques:
- Methodology for determining the toxicity index of nanopowders, products made of nanomaterials, nanopoints, waste and sewage sludge containing nanoparticles by changing the optical density of the Chlorella algae test culture (Chlorella vulgaris Beijer). FR.1.39.2010.09103; MVI 1/25-2010.
- Methodology for determining the toxicity of samples of surface fresh, groundwater, drinking water, wastewater, water extracts from soil, sewage sludge and waste by changing the optical density of the chlorella algae culture (Chlorella vulgaris Beijer). MON F T 14.1:2:3:4.10-04 / 16.1:2.3:3.7-04 FR.1.31.2009.06642.
- Methodology for determining the toxicity of drinking, natural and wastewater, water extracts from soils, sewage sludge and waste by changing the relative index of delayed fluorescence (OPF) cultures of chlorella algae (Chlorella vulgaris Beijer) HDPE F 14.1:2:4.16-09 / 16.1:2.3.3.14-09.
Evropolitest
Ivanteevka
Produced in: Moscow region
Liquid thermostat VIS-T-09-3
Operating temperature range +15...+150 °C
Three places for glass viscometers.
Overflow design ensures stability and uniformity of temperature not worse than ± 0.01 °C
Bath volume 16 l
Number of jobs 3
Overall dimensions 510x230x660 mm
The open part of the bath 210x94 mm
Bath depth 315 mm
The size of the viewing window is 200x300 mm
Weight 29 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Liquid low-temperature thermostat CRYO-VIS-T-07
Operating temperature range +10...+60 °C
Five places for glass viscometers.
The stability and uniformity of the temperature in the working bath is not worse than ± 0.01 ° C.
Bath volume 20 l
Overall dimensions 620x400x970 mm
The open part of the bath is 240x170 mm
Bath depth 300 mm
The size of the viewing window is 205x260 mm
Weight 60 kg
Power consumption 3.5 kW
Termeks
Tomsk
Produced in: Tomsk
VT12-2 Liquid thermostat
It is designed to maintain a set temperature of a liquid coolant circulating both in an internal bath and in external consumers of a closed or open type.
Pump for closed or open type thermostating systems.
All-metal stamped tub with a volume of 12 liters and a depth of 150 mm.
The stability and uniformity of the temperature in the inner bath is not worse than ± 0.1 ° C.
The operating temperature range is +20...+200 °C.
Bath volume 12 l
Overall dimensions 420x330x430 mm
The open part of the bath is 150x260 mm
Bath depth 150 mm
Weight 14 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Liquid thermostat VT-R-02
The operating temperature range is +20...+100 °C.
Two workplaces for placing prepared Raid bombs with pressure gauges.
The stability and uniformity of the temperature in the working bath is not worse than ± 0.01 ° C.
The volume of the bath is 30 liters
Overall dimensions 335x280x800 mm
The open part of the bath is 120x210 mm
Bath depth 500 mm
The size of the viewing window is 190x480 mm
Weight 25 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Cryothermostat liquid FT-311-80
Technical specifications:
Operating temperature range, °C -80...+100
Accuracy of temperature maintenance, °C ± 0.1
The discreteness of the temperature display, ° C 0.1
Cooling capacity at 20°C,
W 510
Pump capacity in the discharge (suction) circuit, not less than, l/min 8
Volume of working fluid, l 11
Open part of the bath/depth, mm 175x135/200
Power supply, V/Hz 220/50
Power consumption, no more than 4.4 kW
Overall dimensions, mm 535x555x985
Weight without working fluid, kg 80
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Liquid thermostat VT-ro-05
Eight workstations with a diameter of 125 mm and a depth of 470 mm.
The operating temperature range is +10...+30°C.
The stability and uniformity of the temperature in the working bath is not worse than ± 0.01 ° C.
Bath volume 170 l
Overall dimensions 970x360x920 mm
The open part of the bath 700x320 mm
Bath depth 570 mm
The size of the viewing window is 840x530 mm
Weight 68 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Liquid high temperature thermostat VT-400
It is suitable for the distillation of high-boiling substances and for the implementation of high-temperature catalytic reactions.
The operating temperature range is +100...+400 °C.
The volume of the bath is 5 liters
Overall dimensions 270x490x860 mm
Weight 50 kg
Power consumption 2.5 kW
Termeks
Tomsk
Produced in: Tomsk
VT8-2 Liquid thermostat
It is designed to maintain a set temperature of a liquid coolant circulating both in an internal bath and in external consumers of a closed or open type.
Pump for closed or open type thermostating systems.
All-metal stamped tub with a volume of 8 liters and a depth of 150 mm.
The stability and uniformity of the temperature in the inner bath is not worse than ± 0.1 ° C.
The operating temperature range is +20...+200 °C.
Bath volume 8 l
Overall dimensions 315x330x400 mm
The open part of the bath is 120x200 mm
Bath depth 150 mm
Weight 13 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Circulation thermostat LT-411a
The LOIP LT-411a modification device consists of an immersion thermostat-circulator LOIP LT-400 and a working bath with a flat removable lid.
Technical specifications:
Temperature range:
without external cooling, °C
Current+10 ... +200
with tap water cooling °C
Tvods+5 ...+200
Accuracy of temperature maintenance, °C ± 0.01
The error of setting the set temperature, no more than, ° C ± 0.02
Heater power, W 2200
Pump:
max. flow rate, l/min 6...12
pressure, 0.4 bar
Bath volume, l 11
The working fluid is water, silicone oil.
The open part of the bath / depth, mm 165x230/200
Overall dimensions, mm 268x335x400
Weight, kg 11.4
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Circulation thermostat LT-324a
Technical specifications:
Temperature range:
without external cooling, °C
Current+10 ... +150
with tap water cooling °C
Tvods+5 ...+150
Accuracy of temperature maintenance, °C ± 0.1
The error of setting the set temperature, no more than ° C ± 0.2
Heater power, W 2000
Pump:
max. flow rate, l/min 8,0
pressure, 0.25 bar
Bath volume, l 24
Working fluid water, water-glycerin mixtures, silicone oil
Open part of the bath / depth, mm 360x296/200
Overall dimensions, mm 532x335x400
Weight, kg 15,5
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Liquid thermostat VT-ro-01
Operating temperature range +15...+100 °C
All-metal bath.
Basket for placing six cylinders for hydrometers.
The stability and uniformity of the temperature in the working bath is not worse than ± 0.01 ° C.
The volume of the bath is 30 liters
Overall dimensions 340x280x800 mm
The open part of the bath is 120x210 mm
Bath depth 500 mm
Weight 23 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
CRYO-VT-90 Low-temperature liquid thermostat
It is designed to maintain the set temperature of the coolant circulating in the connected external consumers.
Feed pump for external closed-type thermostating systems.
Cooling capacity 300 W at -80 °C.
An internal bath with a volume of 9 liters and a depth of 200 mm.
The operating temperature range is -90...+100 °C.
Overall dimensions 510x800x1230 mm
Weight 120 kg
Power consumption 4.2 kW.
Termeks
Tomsk
Produced in: Tomsk
Cryothermostat liquid FT-216-40
Technical specifications:
Operating temperature range, -40 °C...+100
Accuracy of temperature maintenance, °C ± 0.1
The discreteness of the temperature display, ° C 0.1
Cooling capacity at 20°C,
Tue 770
Pump capacity in the discharge (suction) circuit, not less than, l/min 10.5
Volume of working fluid, l 16
Open part of the bath/depth, mm 248x170/200
Power supply, V/Hz 220/50
Power consumption, not more than 3.6 kW
Overall dimensions, mm 450x420x890
Weight without working fluid, kg 60
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Liquid thermostat VIS-T-09-4
Operating temperature range +15...+150 °C
Four places for glass viscometers.
Overflow design ensures stability and uniformity of temperature not worse than ± 0.01 °C
Bath volume 22 l
Number of jobs 4
Overall dimensions 580x230x660 mm
The open part of the bath is 280x94 mm
Bath depth 315 mm
The size of the viewing window is 270x300 mm
Weight 31 kg
Power consumption 2.2 kW
Termeks
Tomsk
Produced in: Tomsk
Vacuum drying cabinet SNVS-50/3.5
They are designed for carrying out various technological processes at temperatures from 40 to 500 oC, in vacuum up to 1x10−3 mmHg, or in an inert gas of high purity.
They are used for drying, light annealing, aging, low and medium tempering in an oxidizing environment, degassing of ferrous and non-ferrous metals (including copper and copper alloys), or any other materials processed under similar conditions.
The program setting of heat treatment modes including vacuuming, high purity inert gas intake with repeated vacuuming allows heating in an oxidizing environment with high purity of the surfaces of the processed parts, without scale formation and oxidation.
Tula-Term
Tula
Produced in: Tula
Collection for storage of purified water S-100
from
79 000 ₽
Designed for collecting, storing and distributing purified water obtained by various purification methods, with a capacity of 100 liters and 100% stainless steel, which allowed for a long service life.
Dimensions in terms of 560x580 mm
Weight 13.5 kg
Livam
Belgorod
Produced in: Belgorod
Muffle furnace LF-9/11-G1
Design features:
Durable ceramic muffle;
Closed heaters on four sides of the chamber;
Microprocessor temperature controller;
Conveniently located control panel and bright LED display;
Ease of management and control;
LED indicators of heater operation and protection operation;
Automatic shutdown of heating when opening the door;
The door opens up and faces the user with the cold side;
Alarm when the current temperature exceeds the limits of the permissible range;
Highly efficient thermal insulation of the housing;
The furnace body is made of high-quality sheet steel and painted with heat-resistant powder paint.
Technical specifications:
Maximum heating temperature, °C +1100
Temperature stability in steady-state thermal mode, °C ± 10
Warm-up time to maximum temperature, no more than 120 min
Dimensions of the working chamber, WxHxD, not less than 200x150x290 mm
Overall dimensions, WxHxD, not more than 525x625x620 mm
Rated supply voltage, 220 V
Rated power, W 5500
LOIP
Saint Petersburg
Produced in: Saint Petersburg
2NVBM-250/3000 Booster high vacuum pump
The 2NVBM-250(R)/3000 booster pump consists of housings, a steam pipe, a trap and a heater. The alignment of the steam line in the pump housing 2NVBM-250(R)/3000 is carried out by a steam line screed, which, when installing the housing on the collector, enters its upper end into the hole of the hood (oil reflector). The required effective speed of action of the forevacuum pump (pumps) at a pressure of 200 Pa (1.5 mm Hg) at the outlet of the 2NVBM-250(R)/3000 booster pump is not less than 25 l/s. The maximum residual pressure of the 2NVBM-250(R)/3000 pump measured by the PMI-2 manometric ionization converter with nitrogen filled into its trap, is no more than 6.6 × 10-4 Pa (5 × 10-6 mm Hg). The pressure of the cooling water at the inlet to the 2NVBM-250(R)/3000 pump should be from 0.2 to 0.5 MPa (from 2 to 5 kgf / cm2). The drain from the pump must be free with a jet break. Cooling water consumption is 360 l/h.
The total amount of working fluid for the 2NVBM-250(R)/3000 pump is 17 liters, the level of the working fluid should be between the upper and lower marks of the level gauge. Replacement or refilling of the working fluid depends on the operating mode of the pump (inlet pressure, pumping duration, etc.) and the composition of the pumped medium, so the time after which the working fluid is replaced or refilled can be 100 hours or more. A large flow rate of the working fluid is observed when the pump is operating in the input pressure range from 1.33 to 13.3 Pa (from 1 · 10-2 to 1 · 10-1 mm Hg). The operating mode of the pump in the range from 13.3 Pa (0.1 mmHg) to the maximum residual pressure is cyclically irregular.
Vakuummash
Kazan
Produced in: Kazan
Muffle furnace LF-15/11-V1
Design features:
Special system of air intake and exhaust of combustion products with adjustable thrust;
Durable ceramic muffle;
Closed heaters on four sides of the chamber;
Microprocessor temperature controller;
Conveniently located control panel and bright LED display;
Ease of management and control;
LED indicators of heater operation and protection operation;
Automatic shutdown of heating when opening the door;
The door opens up and faces the user with the cold side;
Alarm when the current temperature exceeds the limits of the permissible range;
Highly efficient thermal insulation of the housing;
The furnace body is made of high-quality sheet steel and painted with heat-resistant powder paint.
Technical specifications:
Maximum heating temperature, °C +1100
Temperature stability in steady-state thermal mode, °C ± 10
Warm-up time to the maximum temperature, no more than 120 min
Dimensions of the working chamber, WxHxD, not less than mm 215x190x330
Overall dimensions, WxHxD, not more than 525x1045x680 mm
Rated supply voltage, 220 V
Rated power, W 6000
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Muffle furnace LF-7/13-V2
Design features:
Special system of air intake and exhaust of combustion products with adjustable thrust;
Programmable microprocessor temperature controller;
Three programs of ten steps with the ability to set the temperature, heating speed and holding time for each step;
Manual heating mode with timer with sound notification and auto-off;
Durable ceramic muffle;
Semi-open heaters on four sides of the chamber;
Backlit graphic display;
Conveniently located control panel;
Automatic shutdown of heating when opening the door;
Sound and light alarm when the current temperature exceeds the limits of the permissible interval;
Highly efficient thermal insulation of the housing;
The furnace body is made of high-quality sheet steel and painted with heat-resistant powder paint.
Technical specifications:
Maximum heating temperature, °C +1300
Temperature stability in steady-state thermal mode, °C ± 10
Warm-up time to the maximum temperature, no more than 120 min
Dimensions of the working chamber, WxHxD, not less than 200x110x285 mm
Overall dimensions, WxHxD, not more than mm 505x955x655
Rated supply voltage, 220 V
Rated power, W 3300
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Circulation thermostat LT-111b
Technical specifications:
Temperature range:
without external cooling, °C
Current+10 ... +100
with tap water cooling °C
Tvods+5 ...+100
Accuracy of temperature maintenance, °C ± 0.1
The error of setting the set temperature, no more than ° C ± 0.2
Heater power, W 1900
Pump:
max. flow rate, l/min 7.5
pressure, 0.17 bar
Bath volume, l 11
The working fluid is water, water-glycerin mixture.
The open part of the bath / depth, mm 160x240/200
Overall dimensions, mm 268x335x420
Weight, kg 10
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Muffle furnace LF-15/13-G2
Design features:
Programmable microprocessor temperature controller;
Three programs of ten steps with the ability to set the temperature, heating speed and holding time for each step;
Manual heating mode with timer with sound notification and auto-off;
Durable ceramic muffle;
Semi-open heaters on four sides of the chamber;
Backlit graphic display;
Conveniently located control panel;
Automatic shutdown of heating when opening the door;
Sound and light alarm when the current temperature exceeds the limits of the permissible interval;
The door opens up and faces the user with the cold side;
Highly efficient thermal insulation of the housing;
The furnace body is made of high-quality sheet steel and painted with heat-resistant powder paint.
Technical specifications:
Maximum heating temperature, °C +1300
Temperature stability in steady-state thermal mode, °C ± 10
Warm-up time to the maximum temperature, no more than 120 min
Dimensions of the working chamber, WxHxD, not less than mm 215x190x330
Overall dimensions, WxHxD, not more than mm 525x655x680
Rated supply voltage, 220 V
Rated power, W 6100
LOIP
Saint Petersburg
Produced in: Saint Petersburg
Laboratory shaft furnaces SSHOL SSHOL 35/11
The furnaces can be used as universal laboratory furnaces in metallurgical, jewelry and ceramic production, in orthopedic dentistry, chemical and food laboratories.
Technical specifications
Universal laboratory shaft furnaces with software control SSHOL are used for firing products, melting and heat treatment of metals at temperatures up to 1150 ° C.
Max. operating temperature- 1150 ⁰C
Dimensions of the working chamber - Ø300x500 mm
MIUS
Tula
Produced in: Tula
LB186 Laboratory bath
It is designed to solve temperature control problems that do not require high accuracy of maintaining the temperature of the coolant and the uniformity of the temperature field in the working volume.
Laboratory bath LB186 is characterized by simplicity of design, ease of use, reliability and low cost in comparison with liquid thermostats.
Bath volume 140 l
Overall dimensions 1150x570x480 mm
The open part of the bath is 1060x430 mm
Bath depth 300 mm
Weight 58 kg
Power consumption 2.5 kW
Termeks
Tomsk
Produced in: Tomsk
LI-400 Integrated Vacuum Trap
The LI-400 integrated flanged trap is installed inside the diffusion pump instead of the standard oil reflector, without increasing the overall dimensions of the diffusion pump.
The LI-400 trap performs the function of an oil reflector, is installed instead of a standard oil reflector in pumps, has an additional number of cooled screens for capturing oil return flow vapors (more than that of the MU trap), covers the entire area of the input high-vacuum flange.
Vakuummash
Kazan
Produced in: Kazan
Vacuum drying cabinet with manual control SNVS-215/3.5
from
896 374 ₽
The SNVS-215/3.5 vacuum drying cabinet with a volume of 215 liters with manual vacuum adjustment is designed for heat treatment of materials at temperatures up to 350 with air access and in a vacuum controlled by manual valves. Thanks to modern temperature control, it demonstrates excellent performance of heat treatment modes. The measurement system complies with Russian standards and has certificates of entry into the SI State Register. Design for heat treatment in production and clean laboratories. The cabinet can be equipped with a software control device with an automatic timer and a wide selection of additional options.
Tula-Term
Tula
Produced in: Tula
Furnace control cabinet SHUP-160-1
Designation
SHUP-160-1
Switching power, kW
160
Automatic switch, A
320
Supply network voltage, V/Hz
380
Tula-Term
Tula
Produced in: Tula
MM-180/20/35 POZIS Medical freezer
from
58 660 ₽
Refrigerant
404a
Total volume, l.
180
The volume of the freezer / NTO, l.
180
Number of compressors, pcs.
1
Height, mm
870
Height with wheels, mm
940
Depth, mm
720
Width, mm
1310
Weight, kg., no more
80,5
Rated power consumption, W
250
Maximum rated power, W
275
Voltage,
220 V
Warranty,
1 year
Final report on pre-qualification for compliance with the requirements of Good Practice of the EAEU Distribution: yes
Freezer compartment
The temperature in the freezer, °C
-18...-40
Thermal card: yes
Efficiency and energy consumption
Electricity consumption at t storage -18°C and t roc +25°C, kWh/day, no more
than 0.81
Climate class
UHL 4.2 (i.e. for moderate and cold climate)
Frequency, Hz
50
Approximate dimensions of the product with packaging
Net weight of the product, kg
80,5
Gross weight of the product, kg
93.5
Volume of packaging, m3
0,965
The length of the package, m
0,75
Width of the package, m
1.34
Height of the package, m
0.96
POZIS
Зеленодольск
Produced in: Zelenodolsk, Tatarstan
Thermal collector for sterile solutions TS-100
from
334 200 ₽
Allows you to accumulate 100 liters of injection water. It is equipped with a heating and recirculation system, a temperature control meter, as well as special air bactericidal filters through which contact with the atmosphere is carried out. The automation system regulates the operation of the pump and heating elements and provides automatic shutdown of the distiller when filling the tank. It consists of 100% stainless steel, which allowed for a long service life.
Overall dimensions (LxWxH) 1200×585×1120 mm
Weight 55 kg
Livam
Belgorod
Produced in: Belgorod
LB21-Sh Laboratory bath
It is designed for thermostating samples in glasses, flasks and other laboratory utensils in cases when high accuracy of temperature maintenance is not required and good uniformity of the temperature field in the working volume is not needed.
The operating temperature range is Current +5...+200 °C.
One workplace with a diameter of 110 mm with five steel O-rings, a tripod and a foot with a clip.
Stamped steel bath with a volume of 3.5 liters and a depth of 60 mm.
Bath volume 3.5 l
Overall dimensions 515x360x610 mm
The open part of the bath is 295x145 mm
Bath depth 60 mm
Weight 6.5 kg
Power consumption 2.5 kW
Termeks
Tomsk
Produced in: Tomsk
Electric resistance chamber vacuum furnace SNVS-1.5.2.0/10SHM10
The electric furnace SNVS-1,5.2,0/10SHM10 is designed for heat treatment in vacuum, according to the technological process. The execution Of The Electric Furnace is mine. The type of cage is monoblock or composite. The loading direction is vertical. The loading method is by universal shop lifting mechanisms.
Tula-Term
Tula
Produced in: Tula
